Adhering to your principle of “quality, assistance, performance and growth”, we’ve obtained trusts and praises from domestic and worldwide client for Wholesale Price Full Body Green Blue Polished Porcelain Tile 200×1200 Big Porcelain Slab Tile, Welcome any of your inquiries and concerns for our products, we look forward to establishing a long-term business relationship with you in the near future. contact us today.
Adhering to your principle of “quality, assistance, performance and growth”, we’ve obtained trusts and praises from domestic and worldwide client for China Tile and Glazed Tile, We hope we can establish long-term cooperation with all of the customers, and hope we can improve competitiveness and achieve the win-win situation together with the customers. We sincerely welcome the customers from all over the world to contact us for anything you have to have!Welcome all customers both at home and abroad to visit our factory. We hope to have win-win business relationships with you, and create a better tomorrow.
PIN BEI122MS-1

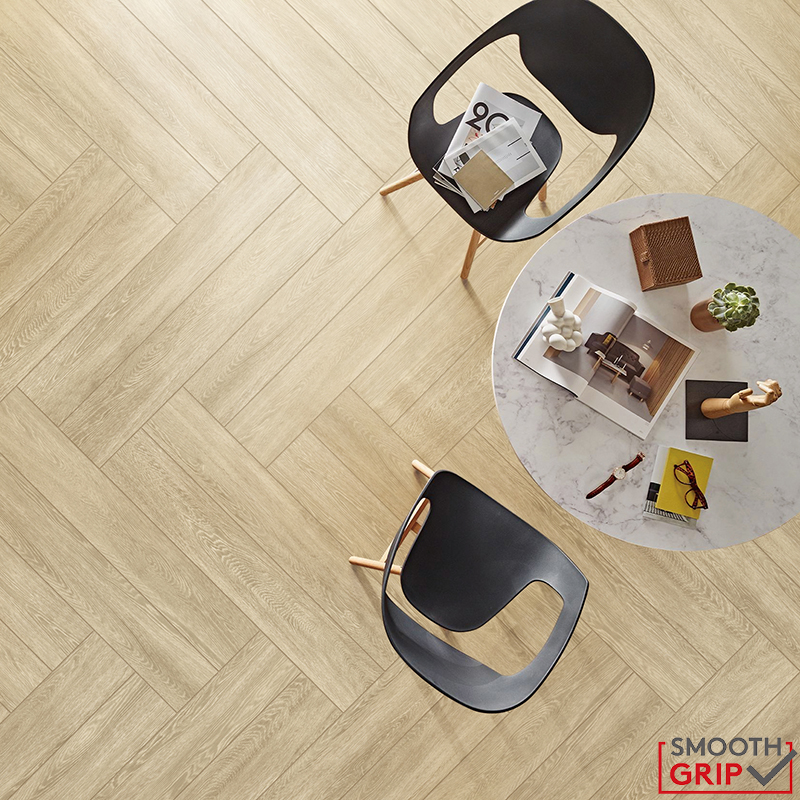

PIN BEI122MS-3
PIN BEI122MS-1
PIN BEI122MS-2

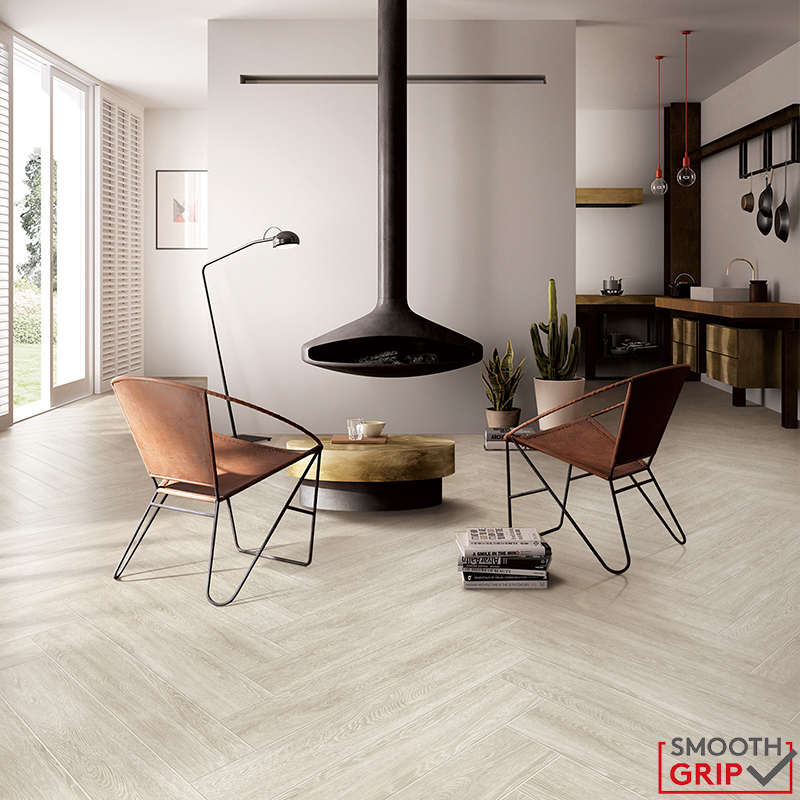

PIN WHT122MS
PIN WHT122MS-2
TECHNICAL CHARACTERISTICS |
TEST METHOD |
STANDARD |
NEX-GEN |
MEASUREMENT & SURFACE APPEARANCE |
LENGTH AND WIDTH |
EN ISO 10545-2 |
±0.6% |
+0.02% ~+0.03% |
±2mm |
-0.1~+0.2mm |
THICKNESS |
EN ISO 10545-2 |
±5% |
+2.2% ~+4.4% |
±0.5mm |
+0.2~+0.4mm |
STRAIGHTNESS OF SIDES |
EN ISO 10545-2 |
±0.5% |
-0.05% ~+0.02% |
±1.5mm |
-0.29mm ~+0.13mm |
PHYSICAL PROPERTIES |
WATER ABSORPTION |
EN ISO 10545-3 |
≤0.5% |
0.05% |
BREAKING STRENGTH |
EN ISO 10545-4 |
≥1300N |
2182N |
MODULUS OF RUPTURE |
EN ISO 10545-4 |
≥35MPa |
45Mpa |
RESISTANCE TO ABRASION |
EN lSO 10545-7 |
REPORT TO ABRASION CLASS |
Class 3 |
REPORT CYCLES PASSED |
1,500r |
THERMAL SHOCK RESISTANCE |
EN ISO 10545-9 |
NO DEFECT SHOULD BE VISIBLE |
PASS |
FROST RESISTANCE |
EN ISO 10545-12 |
NO SURFACE DEFECTS OR
CRACKS SHOULD BE VISIBLE |
PASS |
SLIDER 96 SLIP RESISTANCE,WET PENDULUM TEST |
ACCORDING TO AS 4586:2013 |
- |
|
SMOOTH GRIP MATT |
|
|
P4 |
CHEMICAL PROPERTIES |
CHEMICAL RESISTANCE
TO HOUSEHOLD CHEMICALS
& SWIMMING POOL SALTS |
EN ISO 10545-13 |
MINIMUM GB |
GA |
RESISTANCE TO STAINING |
EN ISO 10545-14 |
MINIMUM CLASS 3 |
CLASS 5 |
SERIES |
SIZES |
PCS/CTN |
M²/ CTN |
M²/PLT |
CTN/PLT |
KG/PLT |
PINE |
200x1200mm/8″x48” |
4 |
0.96 |
46.08 |
48 |
1080 |
*Tiles may vary in sizing, weight, colour, pattern, veining, texture, durability, density, surface and finish from batch to batch. Slip ratings serve as an indication and may vary for each batch of tiles. It is recommended that a new test be performed for each batch of tiles if a slip rating certificate is required. The product images shown are for ilustration purposes only and are not an exact representation of the product.Adhering to your principle of “quality, assistance, performance and growth”, we’ve obtained trusts and praises from domestic and worldwide client for Wholesale Price Full Body Green Blue Polished Porcelain Tile 200×1200 Big Porcelain Slab Tile, Welcome any of your inquiries and concerns for our products, we look forward to establishing a long-term business relationship with you in the near future. contact us today.
Wholesale Price China Tile and Glazed Tile, We hope we can establish long-term cooperation with all of the customers, and hope we can improve competitiveness and achieve the win-win situation together with the customers. We sincerely welcome the customers from all over the world to contact us for anything you have to have!Welcome all customers both at home and abroad to visit our factory. We hope to have win-win business relationships with you, and create a better tomorrow.
